01
Laser Cutting
Real production footage showing the core processes from sheet fabrication to structural forming.
01 · Design & Production Preparation

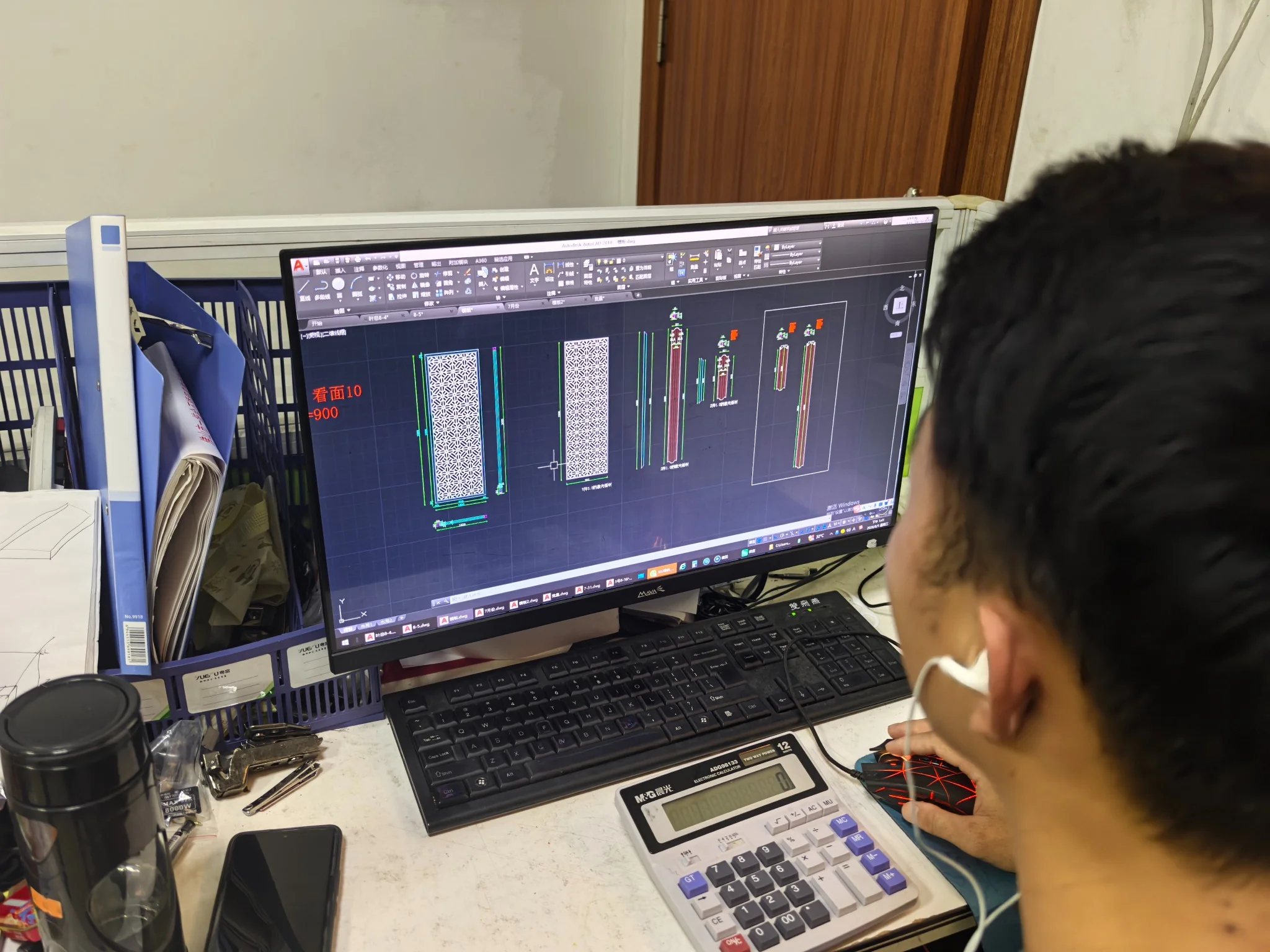

Drawing Confirmation, Shop Drawing Detailing & Fabrication Breakdown
Based on client dimensions, reference images or design drawings, our engineers develop the structure, verify dimensions and prepare fabrication drawings for production.
This section shows shop drawing development and fabrication breakdowns. Based on client drawings, dimensions or reference images, the team confirms dimensions, materials, surface finishes, colours and construction details before releasing work to production.
01Receive drawings or reference images
02Confirm dimensions, materials, finishes and colours
03Structural detailing and fabrication breakdown
04Release to production after confirmation
02 · Metal Fabrication
Laser Cutting, V-Grooving, Bending & Welding
After fabrication breakdown, sheet material is cut, V-grooved, bent, welded, ground and preliminarily assembled to prepare each product for surface finishing.
02
V-Grooving
Real production footage showing the core processes from sheet fabrication to structural forming.
03
Bending
Real production footage showing the core processes from sheet fabrication to structural forming.
04
Welding & Grinding
Real production footage showing the core processes from sheet fabrication to structural forming.
03A · Surface Finishing Route
Fluorocarbon Coating Workflow
Products requiring solid-colour finishes, including matte black, sandblasted champagne gold, gunmetal grey or colour matching to a sample, can follow the fluorocarbon coating workflow. The photographs show paint and colour preparation, surface cleaning, hanging, spraying and finished work.
01
Paint & Colour Preparation
Prepare coatings and supporting materials to the approved colour sample.
02
Surface Cleaning
Clean the workpiece surface to reduce the effect of oil and contaminants on the coating.
03
Hanging Preparation
Suspend and secure workpieces for coating and production flow.
04

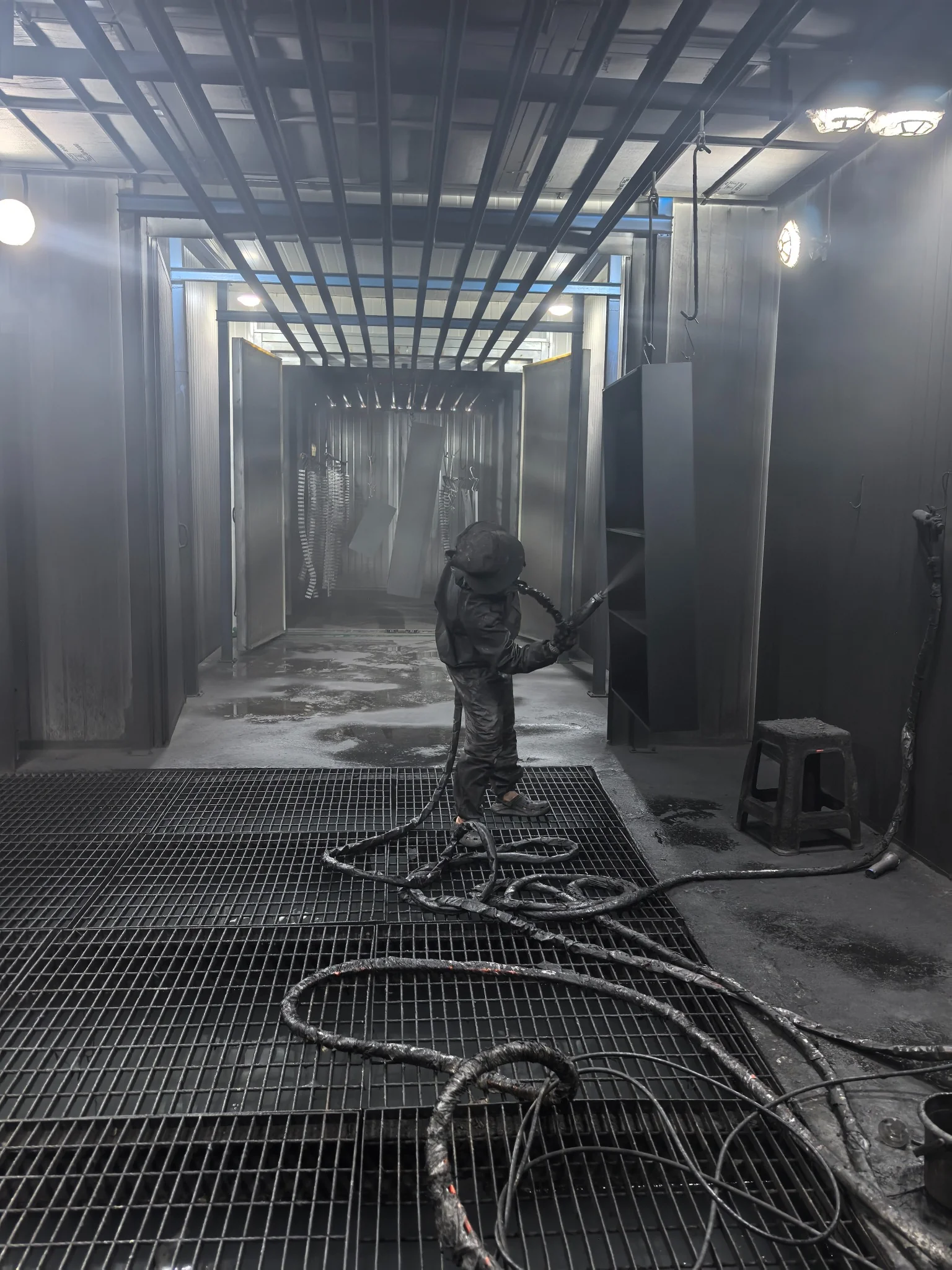

Coating Application
Apply the coating in the spray area, controlling coverage and visual consistency.
05

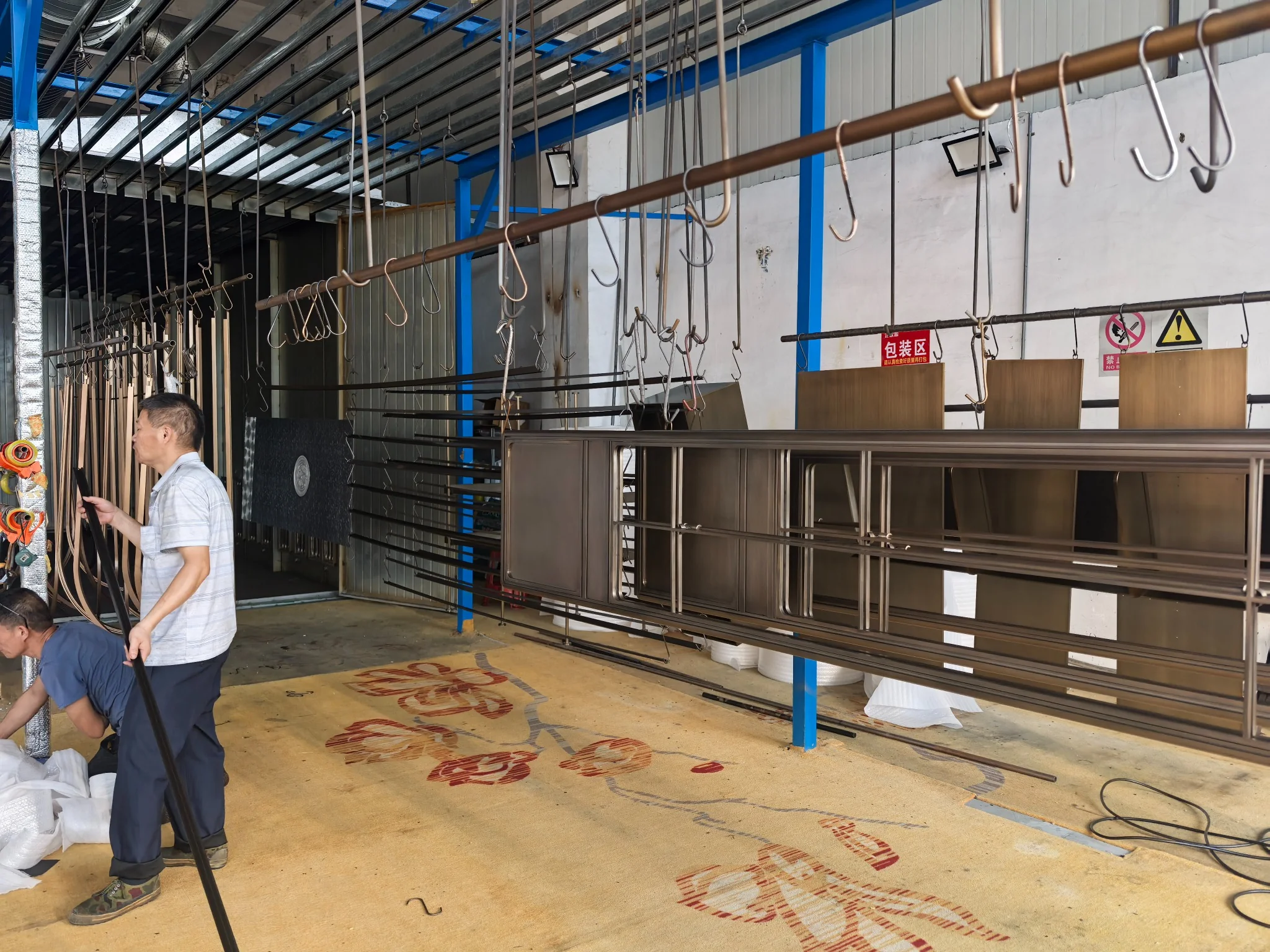

Post-Curing Release
After coating and curing, workpieces proceed to inspection and factory assembly.
03B · Surface Finishing Route
PVD Coating & Metallic Finishes
The PVD route is suitable for champagne gold, rose gold, titanium gold and other metallic finishes. These photos show cleaning, hanging and completed coating.
01 · Cleaning

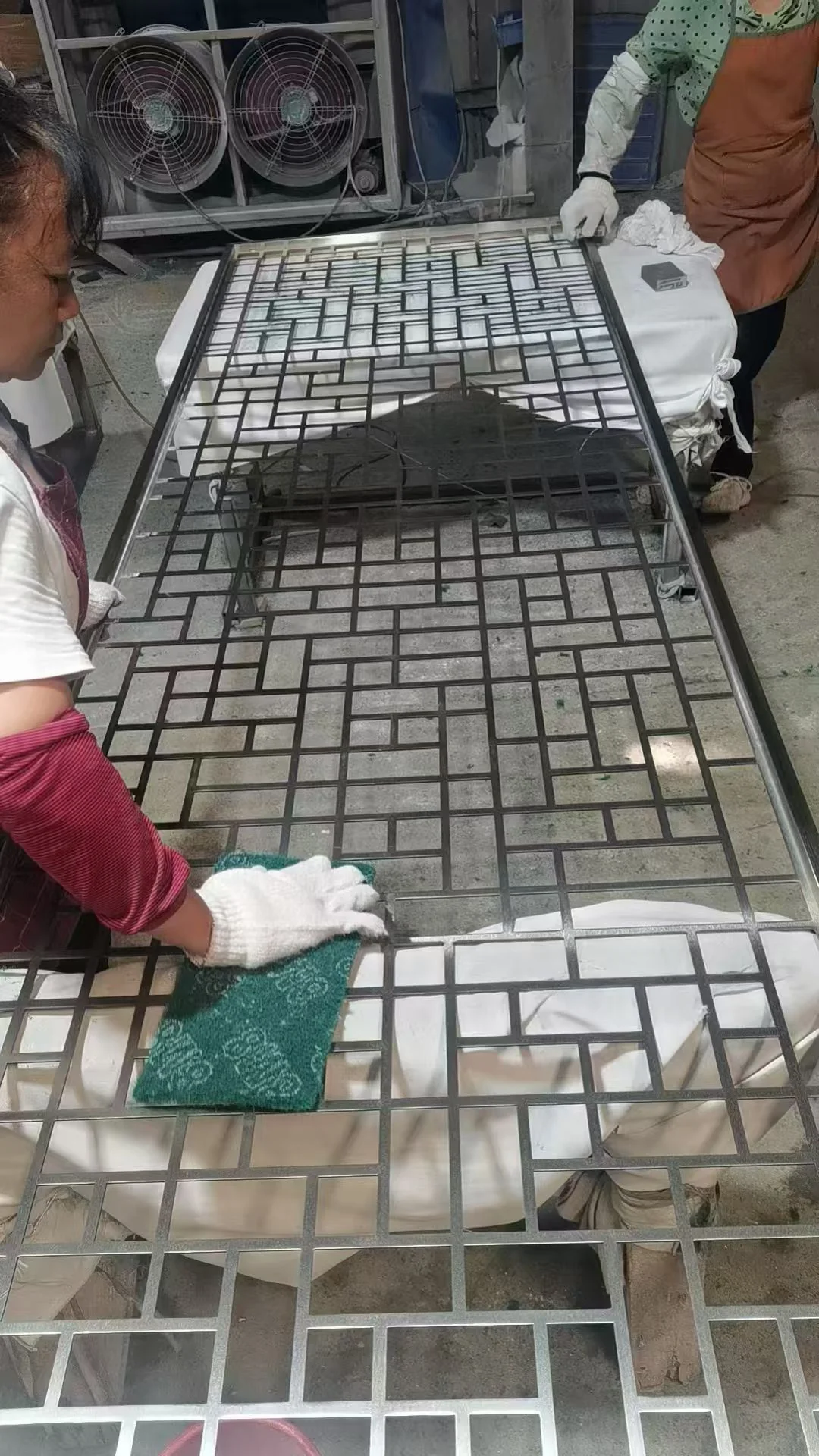

Pre-Coating Cleaning
02 · Hanging
Hanging & Equipment Preparation
03 · Complete

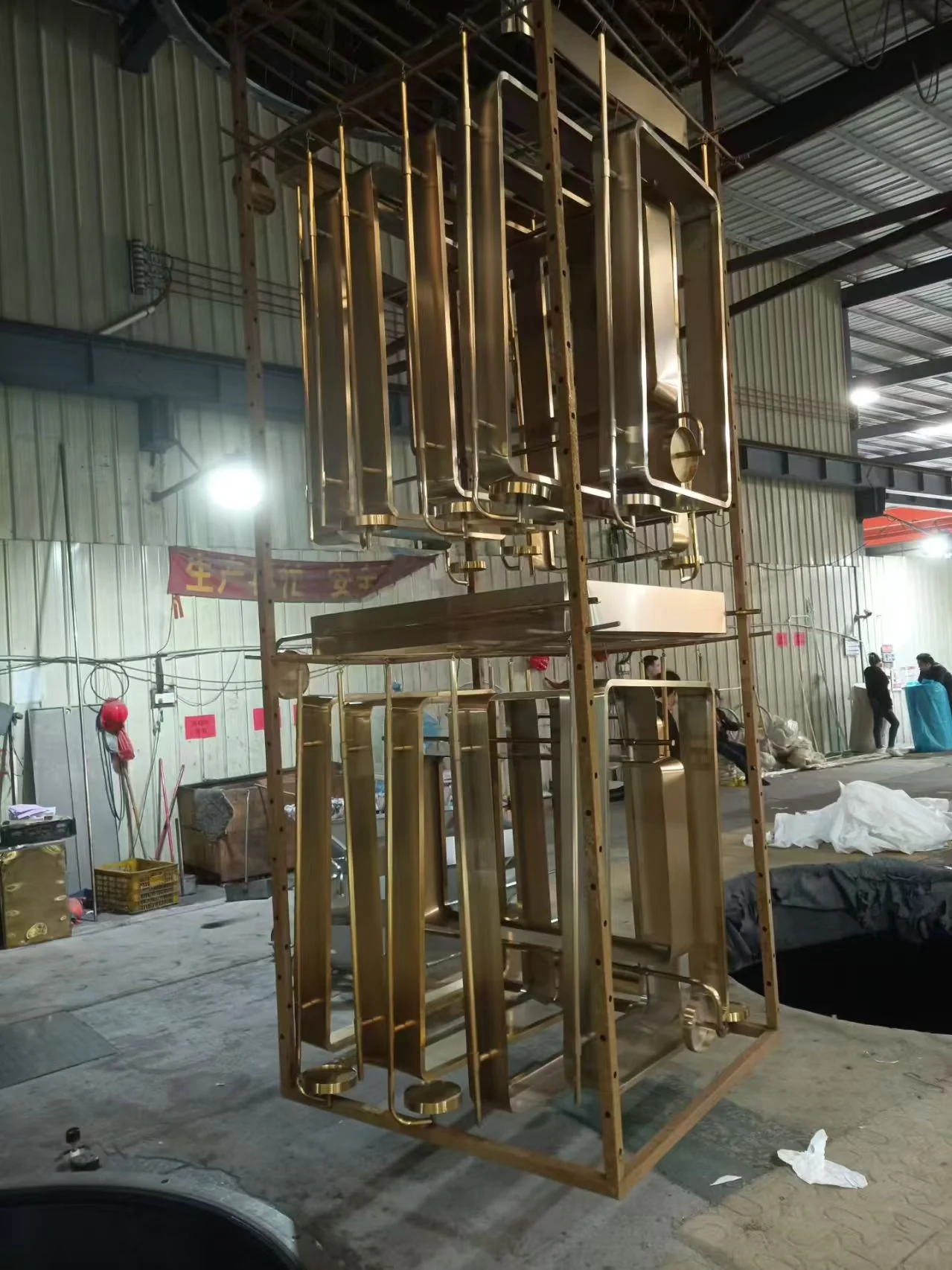

Finished PVD-Coated Work
04 · Factory Assembly
Structural Review, Accessory Installation & Assembly
After fluorocarbon or PVD-finished components return to the factory, we inspect colour and surface quality and install LED strips, illuminated panels, power supplies, control modules and other project accessories.

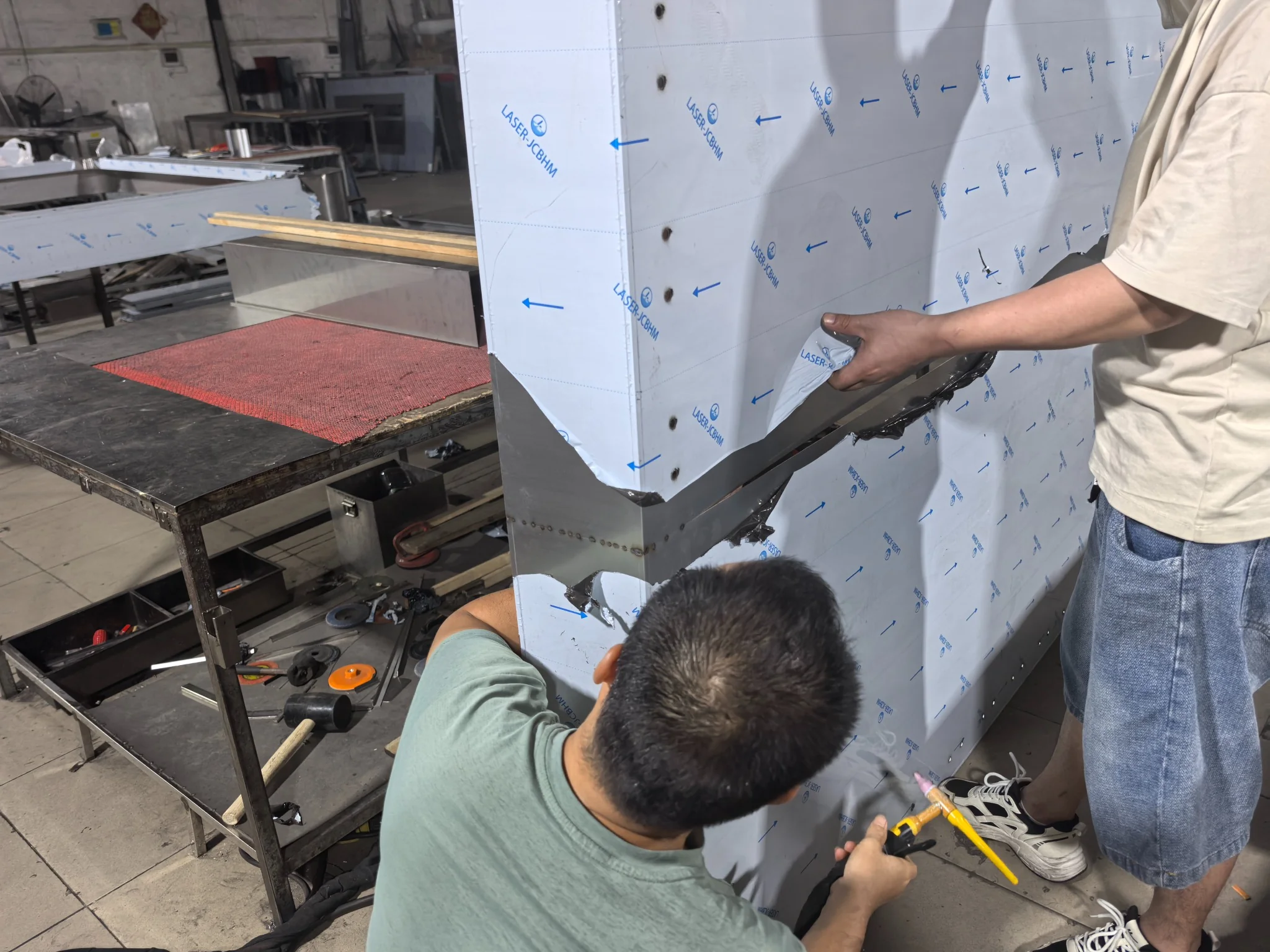

Structure & Accessory Assembly
Check connection points and structural condition, then install the required accessories and components.
LED Strip & Wiring Installation
Install LED strips, wiring, power supplies and control components in line with the design requirements.
05 · Final Factory Inspection
Appearance & Function Review Before Packing
Using reflected light, we inspect flatness, colour consistency, scratches, edges, corners and assembly condition, then verify dimensions against drawings and order requirements with a tape measure.
01Surface Colour & Texture
02Edges, Corners & Joints
03Structural Dimensions & Assembly
04Lighting & Smart Control Function
06 · Packing & Delivery
Inner Packaging, Export Wooden Crates & Shipment
Based on product dimensions, surface finish and transport method, we reinforce products with EPE foam, bubble protection, corner guards and custom wooden crates before final review, loading and shipment.
Inner Packaging & Corner Protection

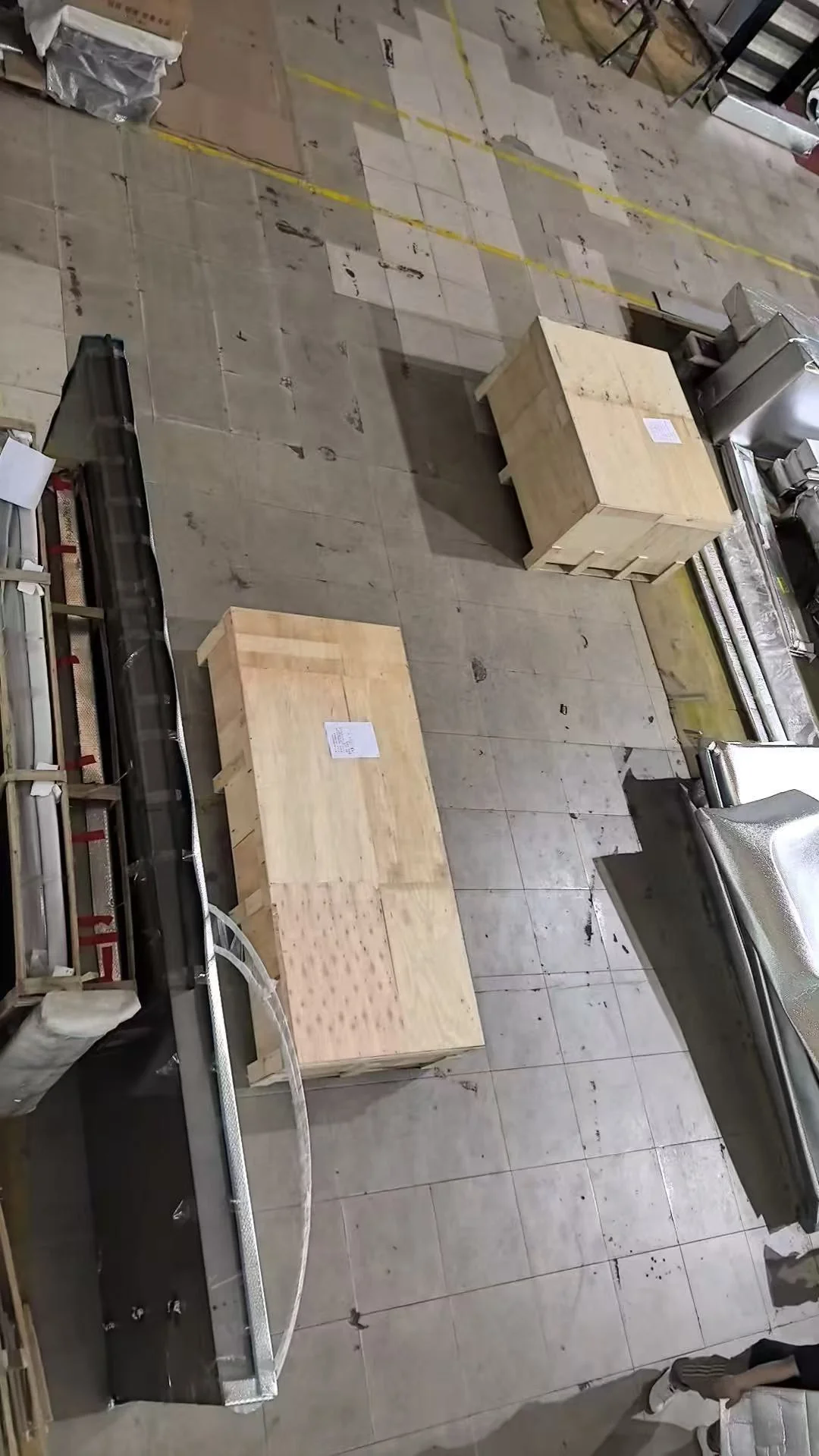

Custom Export Wooden Crate

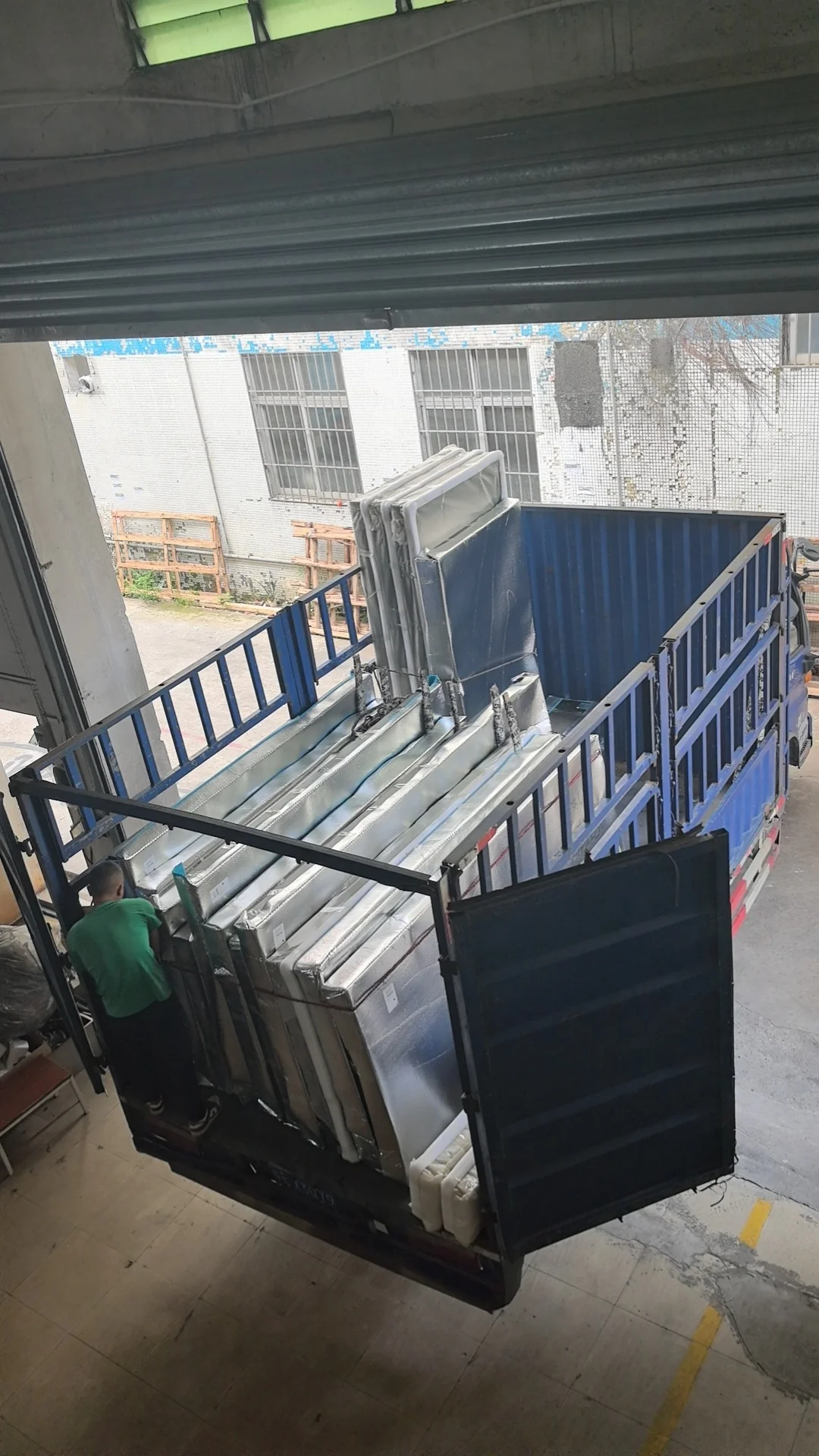

Loading & Shipment01Drawing & Requirement Confirmation
02Shop Drawing Development
03Laser Cutting, V-Grooving & Bending
04Welding & Grinding
05Fluorocarbon Coating or PVD
06Final Factory Inspection
07Lighting & Accessory Installation
08Functional Testing
09Inner Packaging & Wooden Crate
10Loading & Shipment
This workflow shows the complete manufacturing chain, from drawing confirmation and shop drawing development through cutting, forming, welding, grinding, surface finishing, final inspection, installation testing, packing and shipment. Every stage follows project requirements to control dimensions, workmanship, colour and final delivery quality.
Start a Custom Project
Send Us Your Drawings, Dimensions or Reference Images
We will assess product structure, materials, surface finishing, lighting configuration, quantity and delivery destination to prepare a project quotation.
Request a Quote
